HH-168 双线侧缝机 缝鞋机 制鞋机 缝纫机 鞋机厂 供应鞋机 批发

价格
¥ 30000.00
活动价
¥ 818鞋业采购节

起批量:

起批量

批发价

  • ≥1

    ¥30000.00

微信扫码立即下单

加工定制 种类 缝纫机 用途 缝纫设备
自动化程度 半自动 适用厚度范围 厚料机 线迹类型 内线机,其他,其他
品牌 瀚海,其他,其他 型号 HH-168 适用场所 工厂用
作用对象 皮革 驱动形式 脚踏 针数 双针
线数 双线 产品类型 全新 外形尺寸(长*宽*高) 180*80*80(mm)
整机重量 95(Kg) 鞋机 工业缝纫机 属性 缝纫机

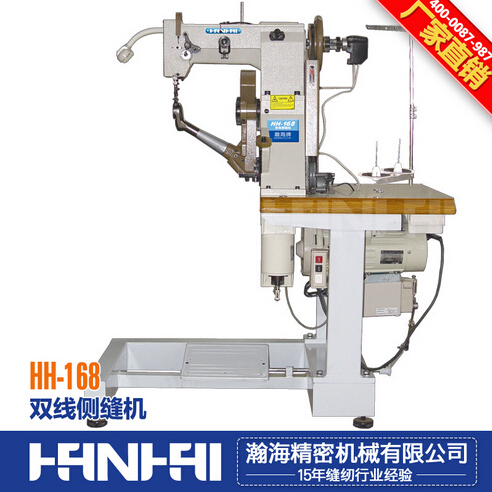

HH-168



双线安全锁缝座式内线机

Two tread lockstitch seated type shoe-border stitcher



特点(Features):



1.分离式传动轴设计,遇任何操作阻碍即迅速空转五圈后自动切断电源。



2.可车缝至18股粗线,牛角保证不需更换。



3.起落针缝部位绝无线头线尾。



4.设有双轴承固定,因此主轴耐用无比。



5.配置无段变速马达,可自动定针及自动提升押脚。



1.Separable-type transmission pulley that will run five idle turns and cut off powerautomatically when encountering any obstacle in operations.



2.It is able to stitch with the No.18thread with out changing the rotating hook opener.



3.No thread ends at needle points.



4.Double shaft positioning thus improving durability of the main shaft.



5.Equipped with P.I.V motor to position the needle and lift the presser foot automatically.



用途(Application):



适用于运动鞋、休闲鞋、凉鞋、溜冰鞋、等各种鞋类产品。



Suitable for kinds of shoe products, such as sports shoes, leisure shoes, sandal, roller skates, etc.



技术参数:



缝制速度:无级调速



线迹:锁式双线



线迹长度: 3-13mm



缝制厚度: 1.5-6mm



机针: CP*5



电动机: 750W/单相220V三相380V /50-60HZ



机器净重: 126Kg



国内连包装:158KG



国内包装尺寸: 118*65*140(长*宽*高cm)



出口连包装: 192Kg



出口包装尺寸: 114*66*140(长*宽*高cm)
