配置双切割头，循环式传送带，支持超级排版（包含分方向排版及固定角度排版），具有智能分页，全自动智能传送，自动定位，辅助纠偏等功能，并接受PLT\CUT\DXF等多种格式文件。
该款机型适合真皮及多层卷性材料的智能裁剪。

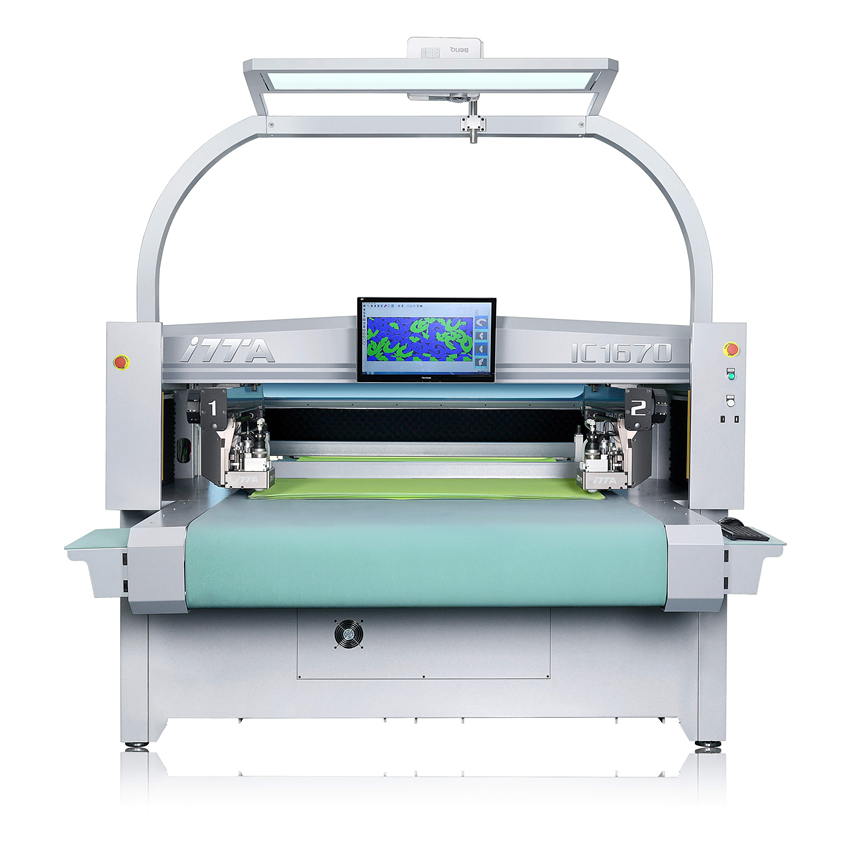

IC1670DH is equipped with two working heads and a endless conveyor belt. It offers automatic nesting technique, intelligent feeding system, intelligent position system, auto transfer, accepts document of DXF/PLT/CUT format.
It is very suitable for cutting the material of leather, artificial leather, textiles and fabrics.
机器参数TECHNICAL PARAMETER：
|
型号
Model
|
IC1670DH
|
IC2010DH
|
|
机器尺寸（LXWXH)
Machine dimension
|
3100X2420X1700mm
|
3800X2710X1550mm
|
|
双刀头切割范围（LXW)
Double working areas
|
1600X700mm
|
2000X1000mm
|
|
5工具
5 tools
|
1刀片/2个冲孔器/1个银笔/ 一个做记号的锥针
1 electrical/penumtic blade/2perforators/1 pen/1 punch
|
|
最快切割速度
Mximum cutting speed
|
84米/分钟（约3307inches/min)
|
|
功率
Power
|
3-phase 200-400VAC, 50-60HZ,
12.5KW monopase 200-240VAC, 50-60,2KW
|
|
配附刀具振动频率
Vibration frequency of the knive
|
15000-18000times/min
|
|
气压
Air consumption
|
4-6pa
|
