性能特点

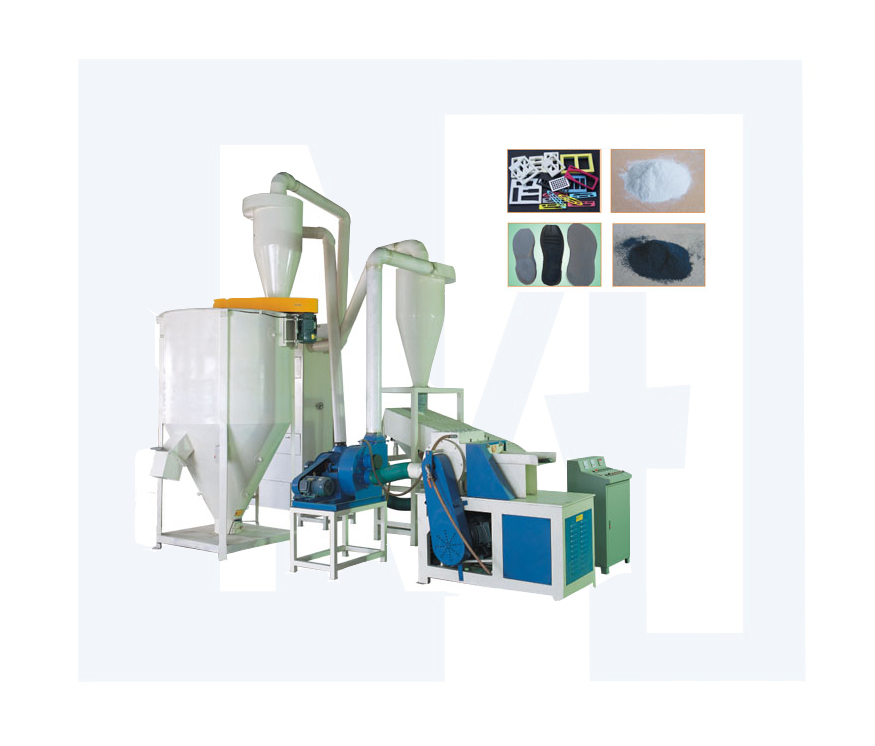

本机是一种新型节能节电环保产品。传统EVA边角料回收通常使用破碎机(22kw)。再经炼胶机 (55kw)混炼成片，时效100kg左右(工人3-4人），经高温挤压，易造成死料，回收率大大减少。而本机采用高速、水冷集一体磨轮，主电机37kw，时效100kg左右(看材料而定)工人1人操作，磨出的粉末细而有弹性。如用传统加工，废料添加12kg，而本机生产的废料至少可加到15kg。从而大大节约了电力、人员，提高回收价值，为企业带来了更高的利润空间。传统式EVA边角料回收是经过炼胶机高温、高压，回收料易造成死料，失去原有的材质。而水冷式磨粉机工作温度60℃左右，磨出来的粉末细又有弹性。比传统的做法生产出来的板材可增厚3mm左右。用水冷式磨粉机可为鞋材发泡厂，每天、每台创造2000元以上的利润。
Performance&characteristic
This machine is one kind of new model energy conservation dimout environmental protection product, as a rule ,thetradition EVA leftover material recycle use crusher(22kw), and refine rubber machinery(55kw) mixrefine into sheet shape , efficiency around 100Kg(need 3-4worker.) ,Classics hightemperature squeezing, IT’S easy to bring about Dead material.,and the coefficient of recovery will depletes, But, this machine adopt high speed , hydrocooling to gather brushwheel in an integral whole.,,the  Host electric motor is 37 KW, and  the Effectiveness for a given period of time 100 KG retinue. (Come to decide according to material).  it's need one workerto operate../And The powder are Thin and Elasticity from themachine to mill out. If using tradition process,  the Wastematerial will add 12KG,but HA-3500 can addition arrivesat 15KG at least.,,,and economize more worker, electricpower. Enhancedthe recycle value///,,take more high temperature , high pressure to refine ,cause the recycle material becomeinto flotsam and lose the original material , And that ,thewater-cooling flour mill work temperature aroud 60℃,Thepowder are Thin and Elasticity from the machine to mill out., The produce board materials can incrassation around 3mmthan the tradition machinery , Use water-cooling flour millcan make profit above 200RMB per set machinery at every
day for the shoes material &foam tactory.
传统式与磨粉机生产效益照对表
The contradistinguish list for tradition model machinery and flour mill production benefit
传统式
Tradition Model 磨粉机
Flour mill 节省费用
Cost saving
破碎机功率 22kw
Crusher power 22KW           〉77KW
炼胶机功率5kw
Refine rubber power 55kw 45kw 32kw
操作人员      3人
Operator 1人 人员2人
时效产量       100kg
Output efficiency 80-100kg 提高效率
Enhance efficiency
回收料在密炼机生产时间60分钟
The recycle material produce time at 60 minute in refine machinery
10-13分钟 提升产量
Improve output
密炼机耗电90-100kw
refine machinery use power 50-60kw 节省40kw
Economize 40kw
每床板材可增厚3mm左右，每m㎡按0.7元计算，一床板材有10m㎡
利润7元/床，一台机子可供应300床，一天的利润就是2100元
per piece board material can incrassation around 3mm, if per square millimeter can save 0.7RMB,and per piece board material have 10 square millimeter that we can make 7.0RMBprofit from per piece board material, and the rather that can produce 300 piece board materials per set machinery that we make 2100RMB profit atone day.
