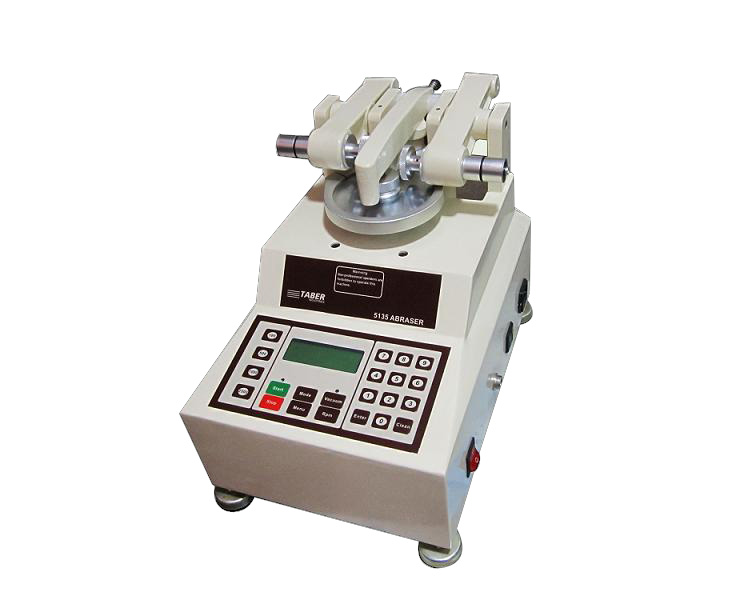

The machine is suitable for cloth, paper, paints, plywood, leather, floor tile, glass, natural plastic etc. Test for the sample of rotary with a pair of grinding wheel, and of the load, test material rotates to drive wheel, so as to abrasion test material. The weight of the abrasion loss weight before and after the test sample.
According to the standard: DIN - 53754537-99531, 09523, 47, TAPPI - T476, ASTM - D1044 D3884, ISO - 5470
1. The test plate: 108 mm diameter; Inside diameter of 8 mm, (D) 3 mm
2. The grinding wheel center distance: 63.5 mm
3. The grinding wheel specimens with disc center spacing: 37 ~ 38 mm
4. The grinding wheel: bits of 2 "(Max: 45 mm). 1/2" (W)
5. Turning speed: 60/72 RPM
6. Load: 250, 500, 1000 g
7. The counter: LCD, 0 ~ 999900
8 specimens and dust collection mouth distance: 3 mm
9. The volume (D * W * H) : 53 * 32 * 31 cm + vacuum cleaner
10. 18 kg weight:
11. Power supply: 1 30, AC220V, 10 a
