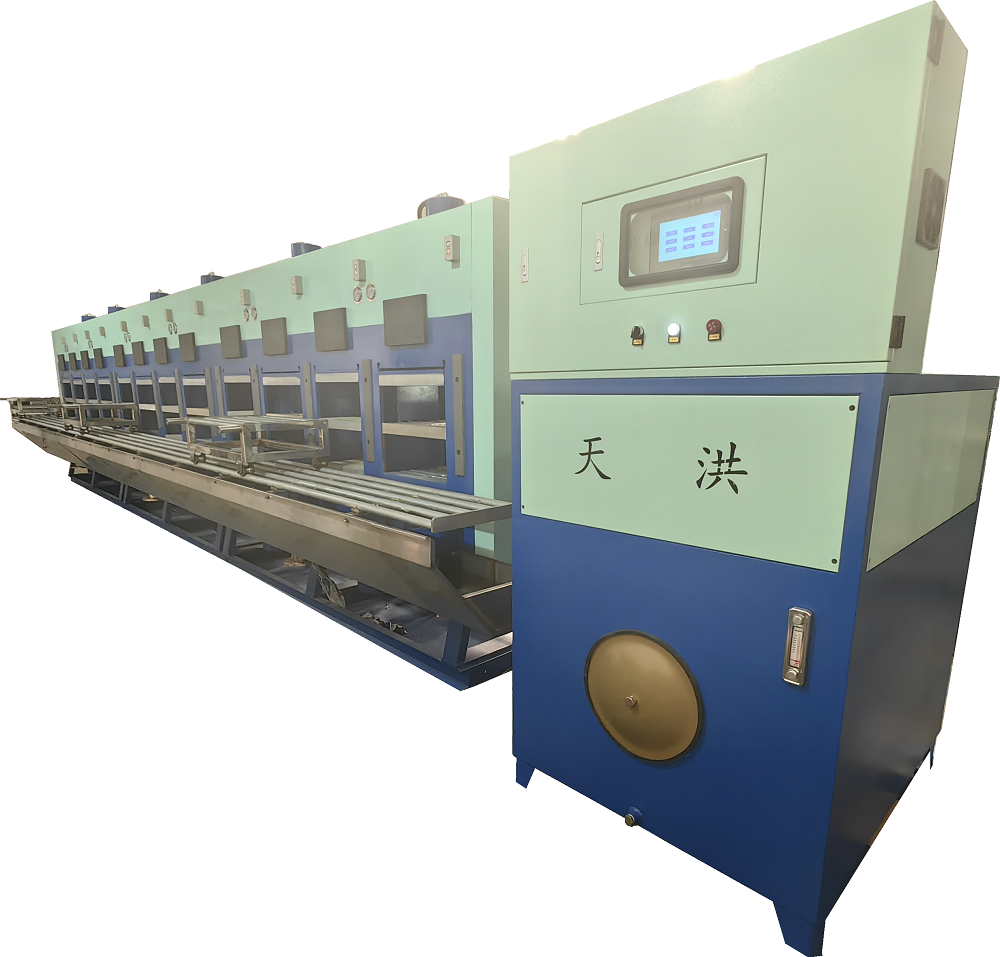

根据客户提供的空间设计，12站式机器安装总长少于12000MM；
According to the space designed to provide customers, total length 8-station machine is installed less than 12000MM;
2 、双层推车带滚轮设计，模具进出轻便省力；
Double stroller with a wheel design, mold and out of light effort;
3 、油箱与机架采用软性连接，有效降低对安装场地的水平要求；
The frame is connected to the reservoir and the soft, reduce the level required for the installation site;
4、冷板采用创新设计，给模具直接冲水冷却，且冷却速度比普通冷板缩短1倍时间，所以产量更高;
Cold plate innovative design, mold to direct flush cooling, and the cooling rate than ordinary cold shortening 1 times time, so
higher yields;
5、本机控制采用电脑板LED显示，功能显示清晰明确；
The machine is controlled by computer board LED display, function display clear;
6、油压系统采用逻辑式回路，回路内无油封配置，无磨损泄漏之忧；
Hydraulic system adopts logic loop operation, no oil seal configuration within the circuit, no wear leak worries;
7、冷板油压缸采用独特的三重防水设计，确保冷却水不会进入油压系统；
Cold plate cylinder using a unique triple waterproof design to ensure that the cooling water does not enter the hydraulic
system;
适用范围: Scope:
各种鞋底成型；
All kinds of shoe molding;
|
型号
|
马达功率
Motor power
|
额定电压
Rated voltage
|
加热方式
heating
|
油缸
Cylinder
|
热板
Hot plate
|
层数
Floors
|
间距
spacing
|
重量
Host weight
|
机械尺寸
size
|
|
TH-MD-12S
|
18.5KW
|
AC 380V
|
蒸汽、热煤油、
电加热 Steam,
hot kerosene，
Electric heating
|
g
Φ150mm
|
450*460mm
|
2
|
200mm
|
9200kg
|
L11500*W1500*H2150mm
|
