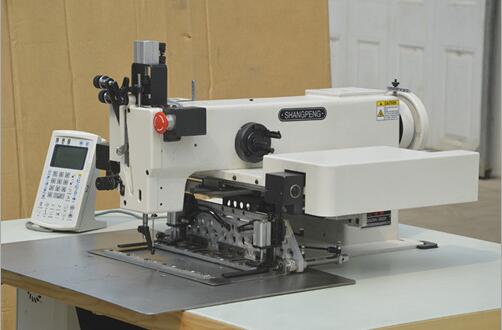

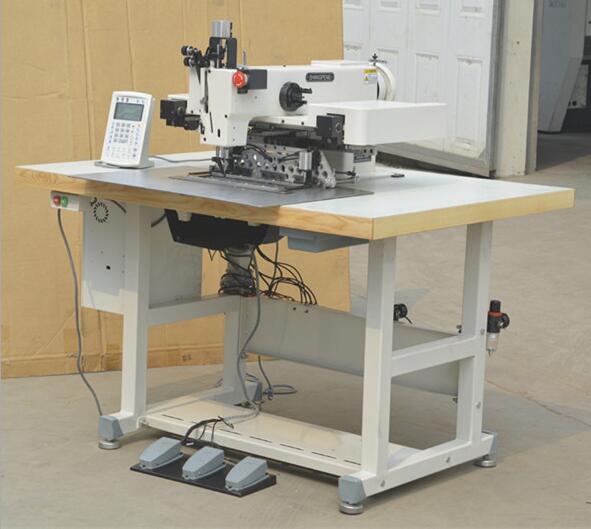

◆特点： 该机型对极厚料加固缝纫提供最佳缝纫效果，该机采用凸轮挑线、摆梭勾线，电脑编程控制，对极厚的材料、较粗的缝线、复杂的图形，都可缝制出高品质的缝迹。
◆Characteristics: This series of models of thick seam reinforcement amlerials to provide the best sewing results. can be completed without the need of skilled sewing requirements, thick material machine is put on a large haloxylon core.
◆主要规格技术：Main Parameters ：
|
用途 USE 极厚料
|
|
缝纫范围 Sewing range 300mm×200mm
|
|
缝纫速度 Sewing speed 800r.p.m（针距5mm以内）大针距缝纫速度相应降低
|
|
针距 Needie distance 1—12mm
|
|
针杆行程 Needie bar stroke 56mm
|
|
外压脚提升量 Height of outer press foot 22mm
|
|
机针型号 Type of needie DY×3
|
|
摆梭 Swinging shuttle KSP—24N
|
